PC-D / DI 系列 [多通道功放]

立即购买

新一代网络功放系统，集成了强大的矩阵功能以及Dante连接能力，进一步强化了使用灵活性与规模性。

产品信息如有变动，恕不另行通知。网站上信息仅供参考，一切以具体实物为准。

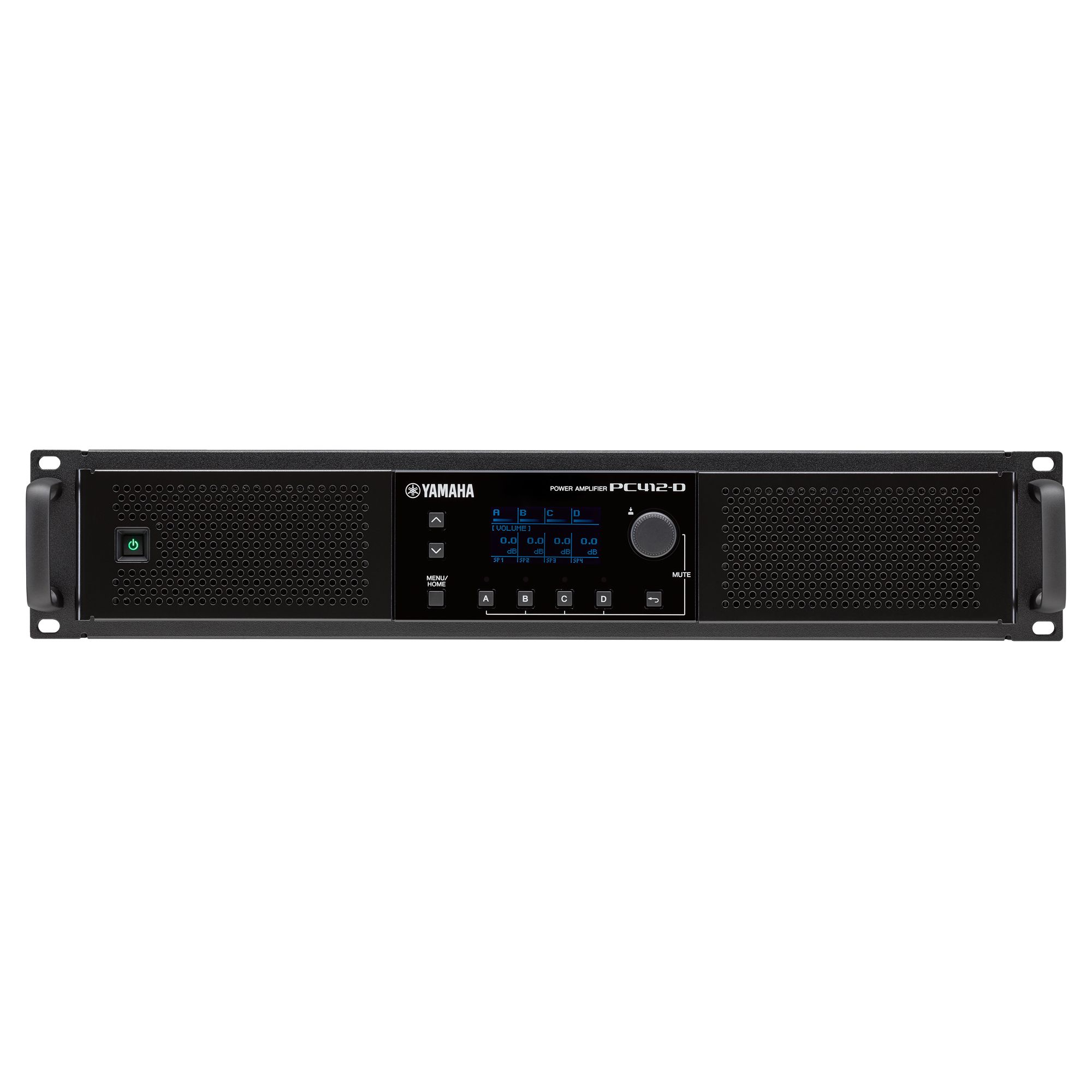

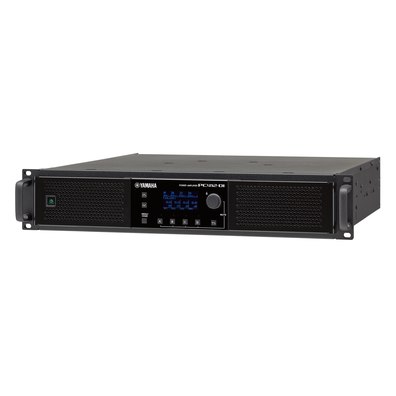

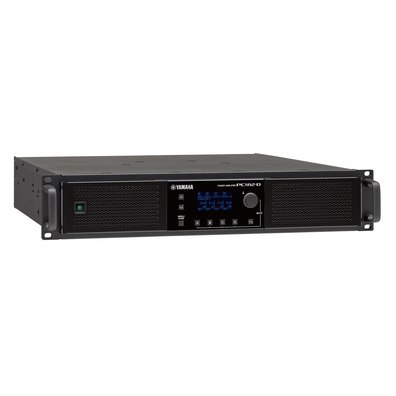

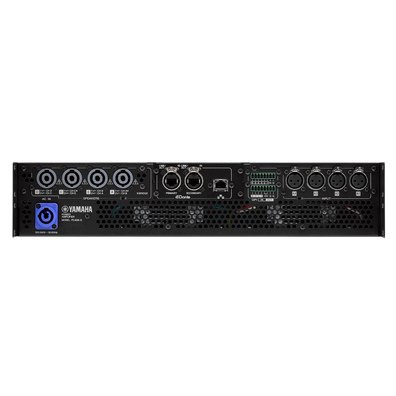

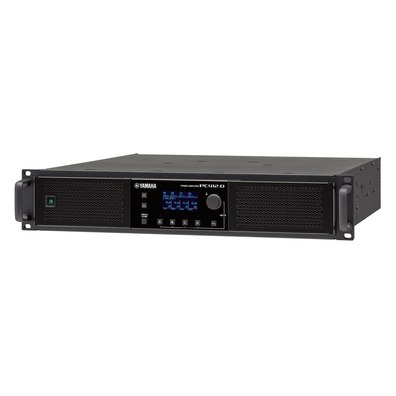

PC412-D 功放

PC-D/DI系列已不仅是一款简单的功放。PC-D/DI系列功放具有令人印象深刻的20 x 8输入矩阵能力，并能与Dante I/O结合，为任何系统的功能性带来惊人的变化。标配强大的内置扬声器处理器。PC-D/DI系列还与Provisionaire Touch和Provisionaire Control兼容，我们可以根据需要提供定制型的远程遥控。1200W x 4 8Ω时。

4 x 1200W 8Ω时
20 x 8 强大的输入矩阵功能
采样频率高达96k
16通道Dante输入/输出
扬声器处理器，如16段PEQ、分频器、滤波器、延迟和限制器
雅马哈扬声器预设
通过ProVisionaire Touch/Control实现远程控制

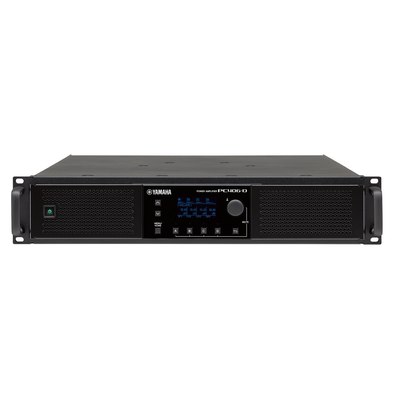

PC406-D 功放

4 x 600W 8Ω时
20 x 8 强大的输入矩阵功能
采样频率高达96k
16通道Dante输入/输出
扬声器处理器，如16段PEQ、分频器、滤波器、延迟和限制器
雅马哈扬声器预设
通过ProVisionaire Touch/Control实现远程控制

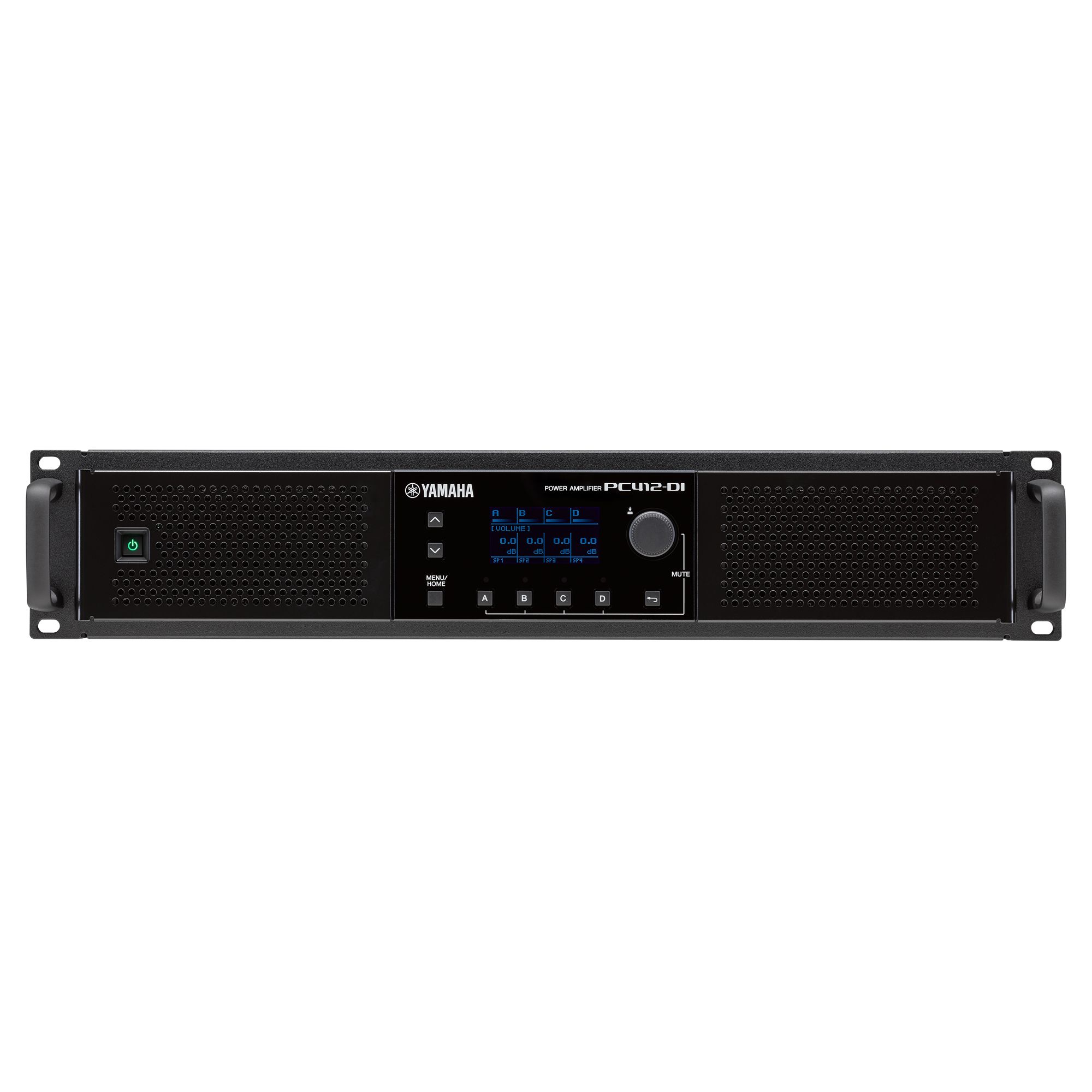

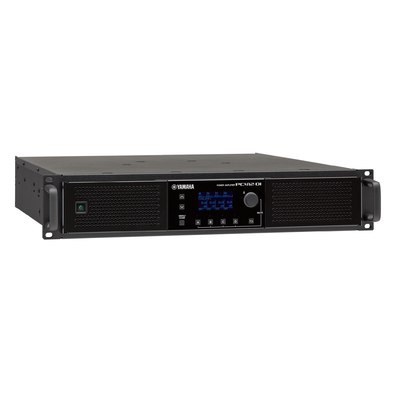

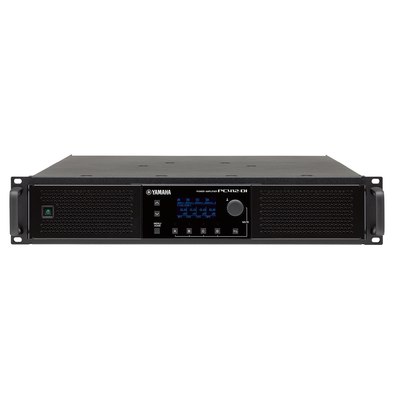

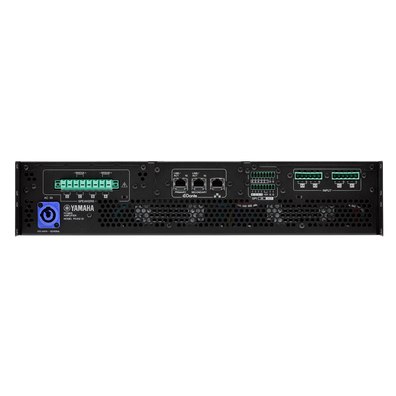

PC412-DI 功放

4 x 1200W 8Ω时，4 x 1200W 100V/70V时
20 x 8 强大的输入矩阵功能
采样频率高达96k
16通道Dante输入/输出
扬声器处理器，如16段PEQ、分频器、滤波器、延迟和限制器
雅马哈扬声器预设
通过ProVisionaire Touch/Control实现远程控制

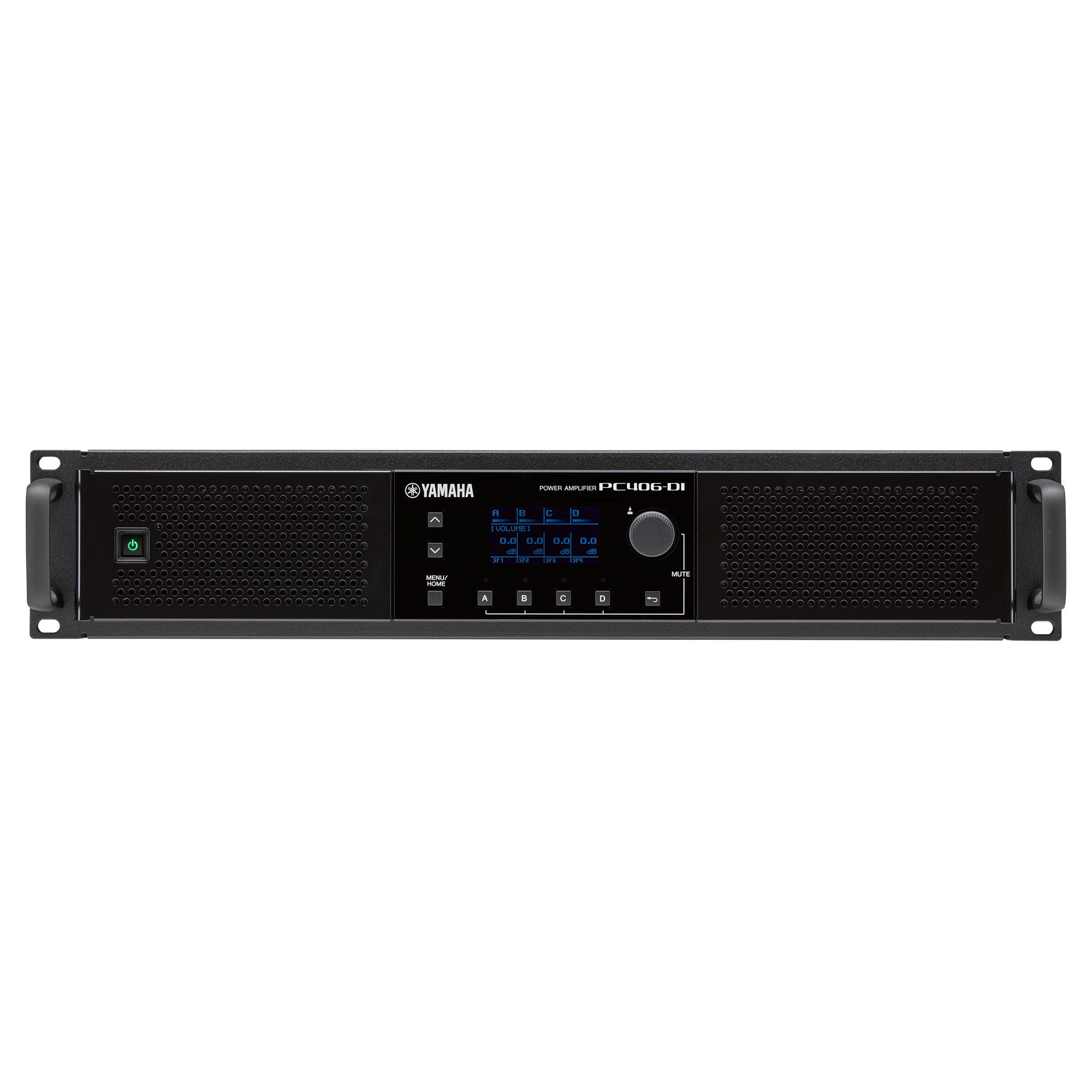

PC406-DI 功放

4 x 600W 8Ω时，4 x 600W 100V/70V时
20 x 8 强大的输入矩阵功能
采样频率高达96k
16通道Dante输入/输出
扬声器处理器，如16段PEQ、分频器、滤波器、延迟和限制器
雅马哈扬声器预设
通过ProVisionaire Touch/Control实现远程控制

强大的矩阵功能和Dante I/O带来卓越的灵活性

PC-D/DI系列功放具有令人印象深刻的20 x 8输入矩阵能力，并能与Dante I/O结合，为任何系统的功能性带来惊人的变化。PC-D/DI系列可作为辅助矩阵来扩展整个系统矩阵，甚至在没有调音台或额外的DSP的系统中，可以从其他模拟设备或Dante设备直接输入声音，以提供更灵活的路由能力。内置Dante输入和输出还允许冗余连接，能够以高达96 kHz的采样频率低延迟处理16个输入/16个输出的音频，同时将PC-D/DI系列与Provisionaire Control等远程软件相结合，提供更大的灵活性和直观控制。

使用矩阵应用程序实现灵活的路由

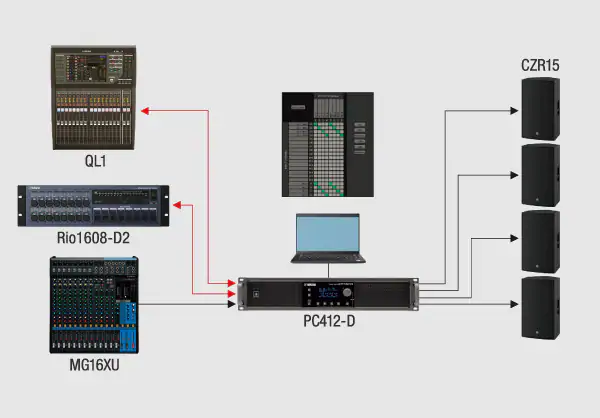

除了来自数字调音台的声音，模拟调音台的声音也能输入至PC412-D中。输入矩阵功能可用于将组合的声音输出到音箱或其他Dante设备。

构建无调音台系统

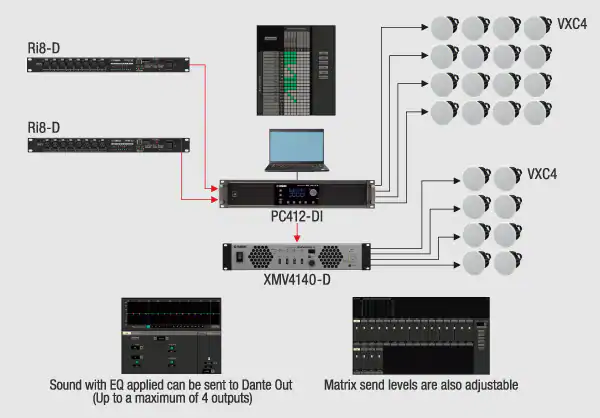

声音从两个设备的Dante输入端传送到PC412-DI中。输入矩阵功能用于将组合的声音传送到音箱。此外，Dante输出可用于将声音与调整过的EQ一起发送至其他功放。

可靠的动能

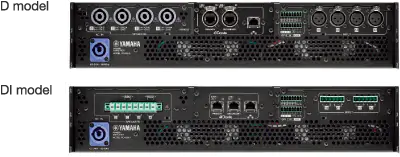

PC-D/DI系列采用高效的D类功放，即使在高负载运行时也能提供卓越的音质和出色的精度与稳定性。“D”巡演型号和“DI”安装型号都包含600 W和1200 W两种版本，每款都具有最适合各自应用的连接。DI型号可以轻松处理高阻抗连接，允许构建由众多音箱组成的系统。所有型号都配有可拆卸手柄和可更换的过滤器。

丰富的处理能力

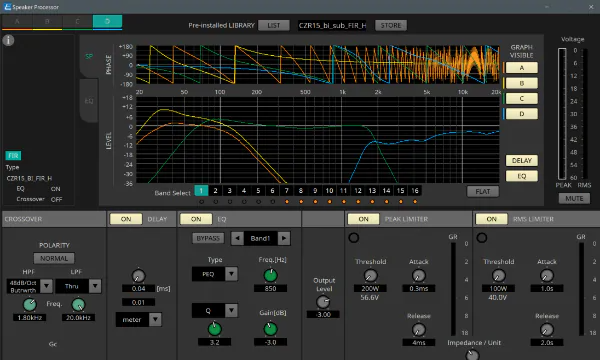

PC-D/DI系列功放具有强大的内置扬声器处理器，可提供16段PEQ、延迟、峰值限制器和RMS限制器等处理器，以及能够实现线性相位的FIR滤波器**，使用户能够精确且轻松地对音箱进行微调。Dante输出可用于将房间EQ的进一步参数调整传输到其他功放中，从而能够集中对多个功放通道的EQ进行调整。扬声器预设库中存储了雅马哈CZR系列和其他系列的优化预设，使您能够轻松为系统加入恰到好处的扬声器调整。

* 只能通过调用扬声器预设数据进行配置

** 未来的固件版本中可实现

ProVisinaire Amp Editor

前面板

ProVisionaire系列……从开始至结束

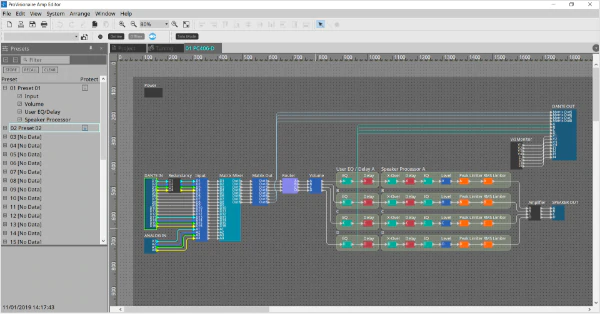

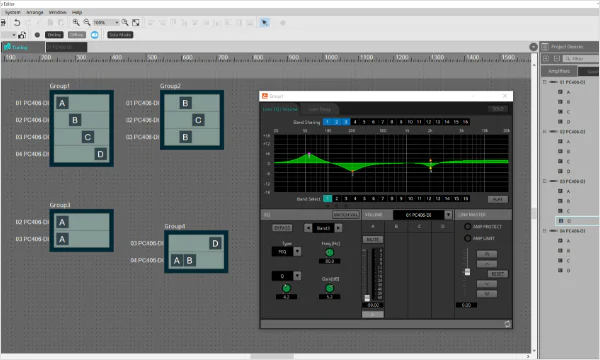

Provisionaire Amp Editor是PC-D/DI系列专用的软件应用程序，可用于微调各个设置，也可对功放进行分组，以设置EQ和延迟参数，并从单个控制面板调整音量。

PC-D/DI功放与Provisionaire Touch和Provisionaire Control兼容，我们可以根据需要提供定制型的远程遥控。

		PC412-D	PC406-D	PC412-DI	PC406-DI
一般规格
输出功率：1kHz，无失真，20msec爆音，所有驱动通道	16Ω	600W x 4	300W x 4	600W x 4	300W x 4
	8Ω	1200W x 4	600W x 4	1200W x 4	600W x 4
	4Ω	1900W x 4	900W x 4	1900W x 4	900W x 4
	2Ω	2500W x 4	1300W x 4	2500W x 4	1300W x 4
	8Ω（BRIDGE模式）	3800W x 2	1800W x 2	3800W x 2	1800W x 2
	4Ω（BRIDGE模式）	5000W x 2	2600W x 2	5000W x 2	2600W x 2
	Hi-Z（70V 模式）	-	-	1200W x 4	600W x 4
	Hi-Z（100V 模式）	-	-	1200W x 4	600W x 4
功放类型		Class D, Single ended output	Class D, Single ended output	Class D, Single ended output	Class D, Single ended output
总谐波失真		0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven)	0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven)	0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven), 0.01% (100V/70V, 1kHz, 10W, All channels driven), 0.1% (100V/70V, 1kHz, Half power, All channels driven)	0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven), 0.01% (100V/70V, 1kHz, 10W, All channels driven), 0.1% (100V/70V, 1kHz, Half power, All channels driven)
频率响应		+0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru)	+0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru)	+0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru)	+0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru)
串扰		≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted)	≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted)	≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted)	≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted)
信噪比		112dB (8Ω, Gain setting = 32dB, A-weighted)	109dB (8Ω, Gain setting = 32dB, A-weighted)	112dB (8Ω, Gain setting = 32dB, A-weighted)	109dB (8Ω, Gain setting = 32dB, A-weighted)
电压增益/灵敏度	8Ω音量最大	32.0dB/+10.0dBu (Gain setting: 32dB), 26.0dB/+16.0dBu (Gain setting: 26dB), 38.0dB/+4.0dBu (Gain setting: +4dBu), 28.0dB/+14.0dBu (Gain setting: +14.0dBu)	32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu)	32.0dB/+10.0dBu (Gain setting: 32dB), 26.0dB/+16.0dBu (Gain setting: 26dB), 38.0dB/+4.0dBu (Gain setting: +4dBu), 28.0dB/+14.0dBu (Gain setting: +14.0dBu)	32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu)
	Hi-Z 100V 模式，音量最大	-	-	32.0dB/+10.2dBu (Gain setting: 32dB), 26.0dB/+16.2dBu (Gain setting: 26dB), 38.2dB/+4.0dBu (Gain setting: +4dBu), 28.2dB/+14.0dBu (Gain setting: +14.0dBu)	32.0dB/+10.2dBu (Gain setting: 32dB), 26.0dB/+16.2dBu (Gain setting: 26dB), 38.2dB/+4.0dBu (Gain setting: +4dBu), 28.2dB/+14.0dBu (Gain setting: +14.0dBu)
	Hi-Z 70V 模式，音量最大	-	-	32.0dB/+7.2dBu (Gain setting: 32dB), 26.0dB/+13.2dBu (Gain setting: 26dB), 35.2dB/+4.0dBu (Gain setting: +4dBu), 25.2dB/+14.0dBu (Gain setting: +14.0dBu)	32.0dB/+7.2dBu (Gain setting: 32dB), 26.0dB/+13.2dBu (Gain setting: 26dB), 35.2dB/+4.0dBu (Gain setting: +4dBu), 25.2dB/+14.0dBu (Gain setting: +14.0dBu)
保护电路	荷载保护	POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically)	POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically)	POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically)	POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically)
	功放保护	Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically)	Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically)	Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically)	Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically)
	电源保护	Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown	Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown	Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown	Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown
冷却		7 step variable speed fan x 3, front to rear airflow	7 step variable speed fan x 3, front to rear airflow	7 step variable speed fan x 3, front to rear airflow	7 step variable speed fan x 3, front to rear airflow
最大输入电压		+28dBu	+25dBu	+28dBu	+28dBu
输入阻抗		20kΩ (balanced)	20kΩ (balanced)	20kΩ (balanced)	20kΩ (balanced)
采样频率		96kHz	96kHz	96kHz	96kHz
A/D D/A 转换器		AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling	AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling	AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling	AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling
Dante Interface	通道计数	16 IN with Dante Redundancy, 16 OUT	16 IN with Dante Redundancy, 16 OUT	16 IN with Dante Redundancy, 16 OUT	16 IN with Dante Redundancy, 16 OUT
	采样频率	96/88.2/48/44.1kHz	96/88.2/48/44.1kHz	96/88.2/48/44.1kHz	96/88.2/48/44.1kHz
	Dante延迟	0.25/0.5/1/2/5ms	0.25/0.5/1/2/5ms	0.25/0.5/1/2/5ms	0.25/0.5/1/2/5ms
	位深	32/24bit	32/24bit	32/24bit	32/24bit
处理器		20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR), PEQ (16 band IIR/FIR), Delay, Peak Limiter, RMS Limiter	20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR), PEQ (16 band IIR/FIR), Delay, Peak Limiter, RMS Limiter	20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR), PEQ (16 band IIR/FIR), Delay, Peak Limiter, RMS Limiter	20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR), PEQ (16 band IIR/FIR), Delay, Peak Limiter, RMS Limiter
延迟		Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz)	Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz)	Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz)	Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz)
I/O 接口	模拟输入	XLR-3-31 x 4	XLR-3-31 x 4	Euro block 6pin x 2 (4ch balanced input)	Euro block 6pin x 2 (4ch balanced input)
	数字 I/O	Dante Interface: etherCON x 2 (Redundant/Daisy Chain)	Dante Interface: etherCON x 2 (Redundant/Daisy Chain)	Dante Interface: RJ45 x 2 (Redundant/Daisy Chain)	Dante Interface: RJ45 x 2 (Redundant/Daisy Chain)
	扬声器输出	Neutrik speakON NL4 x 4	Neutrik speakON NL4 x 4	7.62mm Euro block 8pin x 1	7.62mm Euro block 8pin x 1
	控制端口	RJ45 x 1	RJ45 x 1	RJ45 x 1	RJ45 x 1
	AC	AC inlet (powerCON 20A) x 1	AC inlet (powerCON 20A) x 1	AC inlet (powerCON 20A) x 1	AC inlet (powerCON 20A) x 1
	其它	Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2)	Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2)	Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2)	Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2)
指示灯		Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED)	Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED)	Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED)	Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED)
电源要求		100V - 240V 50Hz/60Hz **	100V - 240V 50Hz/60Hz **	100V - 240V 50Hz/60Hz **	100V - 240V 50Hz/60Hz **
功耗		1850W (1/8 MAX power, 2Ω, Pink noise at all channels), 190W (Idle), 105W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V)	1050W (1/8 MAX power, 2Ω, Pink noise at all channels), 165W (Idle), 100W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V)	1850W (1/8 MAX power, 2Ω, Pink noise at all channels), 190W (Idle), 105W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V)	1100W (1/8 MAX power, 2Ω, Pink noise at all channels), 190W (Idle), 100W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V)
工作温度		0°C to +40°C	0°C to +40°C	0°C to +40°C	0°C to +40°C
存储温度		-20°C to +60°C	-20°C to +60°C	-20°C to +60°C	-20°C to +60°C
外形尺寸	W	480mm (18.90 inch)	480mm (18.90 inch)	480mm (18.90 inch)	480mm (18.90 inch)
	H	88mm (3.46 inch): 2U	88mm (3.46 inch): 2U	88mm (3.46 inch): 2U	88mm (3.46 inch): 2U
	D	528mm (20.79 inch)	528mm (20.79 inch)	528mm (20.79 inch)	528mm (20.79 inch)
净重		16.0 kg (35.3 lbs)	15.6 kg (34.4 lbs)	16.0 kg (35.3 lbs)	15.9 kg (35.1 lbs)
附件		Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euro block plug 3.5mm 8p x 2, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4	Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euro block plug 3.5mm 8p x 2, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4	Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euroblock plug 3.5mm 8p x 2, Audio Input Euroblock plug 5.08mm 3p x 4, Cable tie x 4, Speaker Euroblock plug 7.62mm 8p x 1, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4	Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euroblock plug 3.5mm 8p x 2, Audio Input Euroblock plug 5.08mm 3p x 4, Cable tie x 4, Speaker Euroblock plug 7.62mm 8p x 1, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4

*未来的固件版本中可实现
**本设备的操作已确认可以在+/- 10%的额定供电电压范围内工作

Name	OS	Size	Last Update
ProVisionaire Design V1.0.1 for Win 11/10 and firmware-2	Win	612.7MB	2023-12-18
ProVisionaire Edge V1.1.0 for Win11/10	Win	408.9MB	2023-09-26
ProVisionaire Control KIOSK V3.12.0 for Win 11/10	Win	92.1MB	2023-06-07
ProVisionaire Control V3.12.0 for Win 11/10	Win	107.3MB	2023-06-07

*PC-D/DI系列固件包含在“ProVisionaire Amp Editor”下载包内。

ProVisionaire Control

ProVisionaire Control KIOSK

PC-D / DI Series

English

Name	中文	英文
PC412-D PC412-DI PC406-D PC406-DI Owner's Manual	[5.3MB]	[3.1MB]
PC412-D PC412-DI PC406-D PC406-DI Owner's Manual (HTML)	[中文]	[English]
PC412-D PC412-DI PC406-D PC406-DI Quick Start Guide	[4.2MB]	[2.2MB]
ProVisionaire Amp Editor Setup Guide	—	[English]

Name	English	English
CAD Data (PC-D / DI Series)	—	[2.3MB]

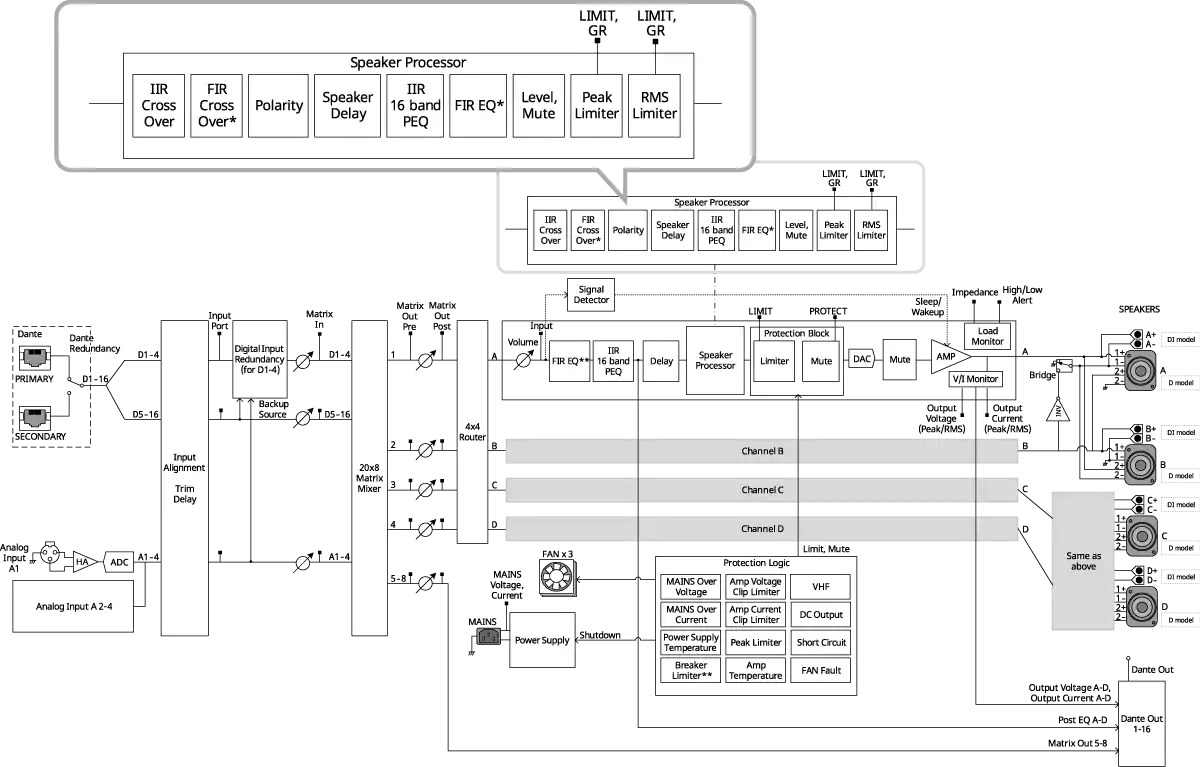

PC-D / DI Series Block Diagram	—	[83KB]
PC-D / DI Series Dimensions	—	[221KB]
PC-D / DI Series Remote Control Protocol Specifications V1.0.2	—	[639KB]

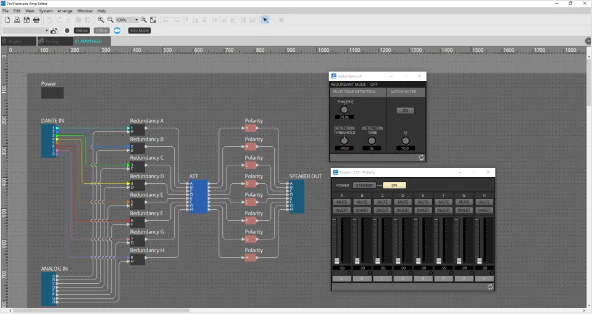

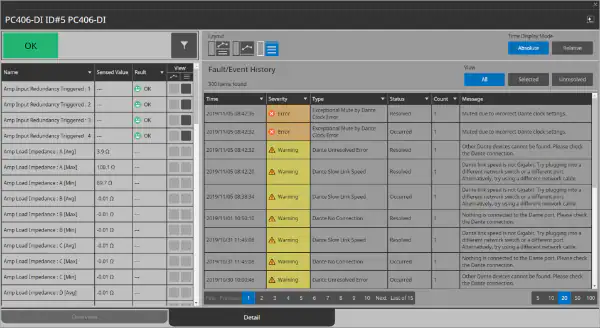

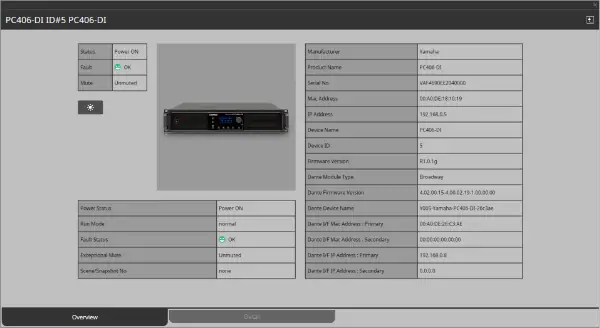

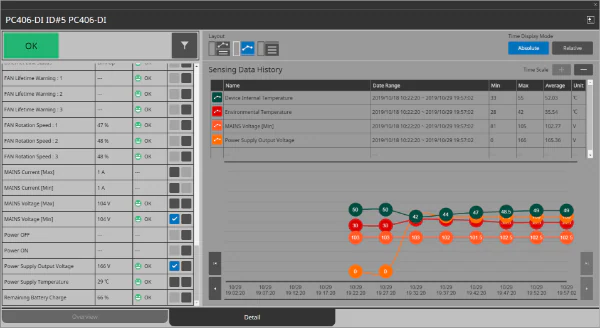

ProVisionaire Amp Editor是一款Windows应用程序，可为雅马哈的PC系列和XMV系列功率放大器提供多功能一体式的设置、控制和监控。ProVisionaire Amp Editor具有详尽的图形界面，有助于简化设计，优化工作流程，还可为与PC系列功率放大器一同使用的CZR系列音箱提供线性相位FIR滤波器，除此之外，大量预设库也帮助用户更便捷地完成其他雅马哈音箱的性能优化。ProVisionaire Amp Editor使设置和高品质声音系统的调试过程更为顺畅。

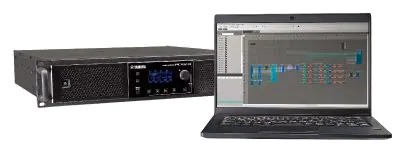

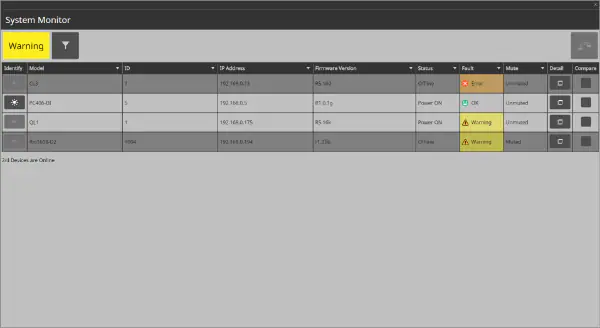

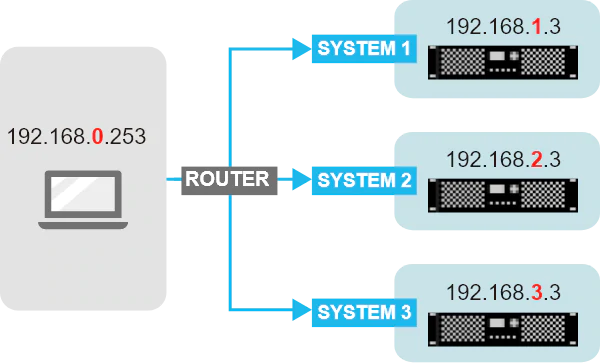

ProVisionaire Amp Editor可以与计算机中的ProVisionaire Control和平板设备中的ProVisionaire Touch结合使用，无论是系统设计和设置，还是日常操作和管理，可以对项目进行全面控制。Editor中的小装置可以拖放到ProVisionaire Control中，也可轻松将参数分配至ProVisionaire Control KIOSK和ProVisionaire Touch KIOSK应用程序中。
