Naturally Extended Lows Bring the Music to Life

VXS series “S” model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.

VXS 系列 "S model"

VXS series "S models" are subwoofers that ideally complement the expressive natural sound of VXS and VXC series speakers.

产品信息如有变动,恕不另行通知。网站上信息仅供参考,一切以具体实物为准。

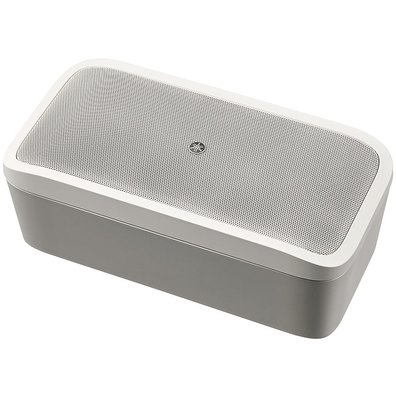

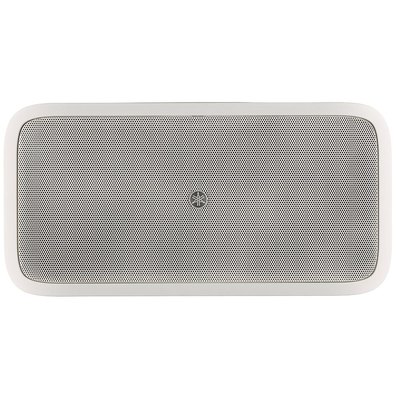

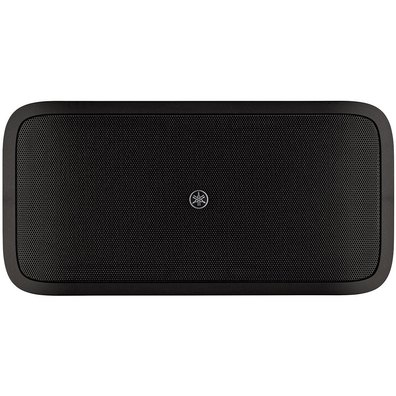

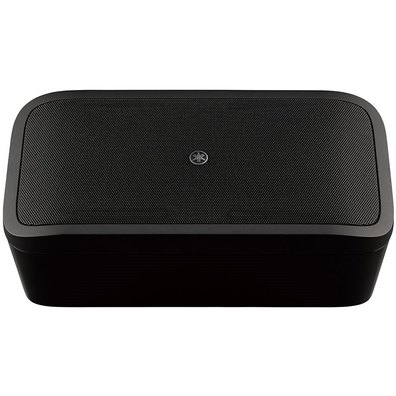

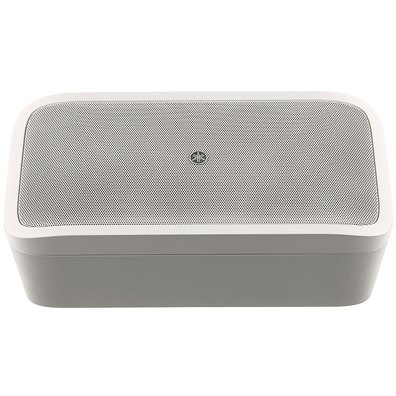

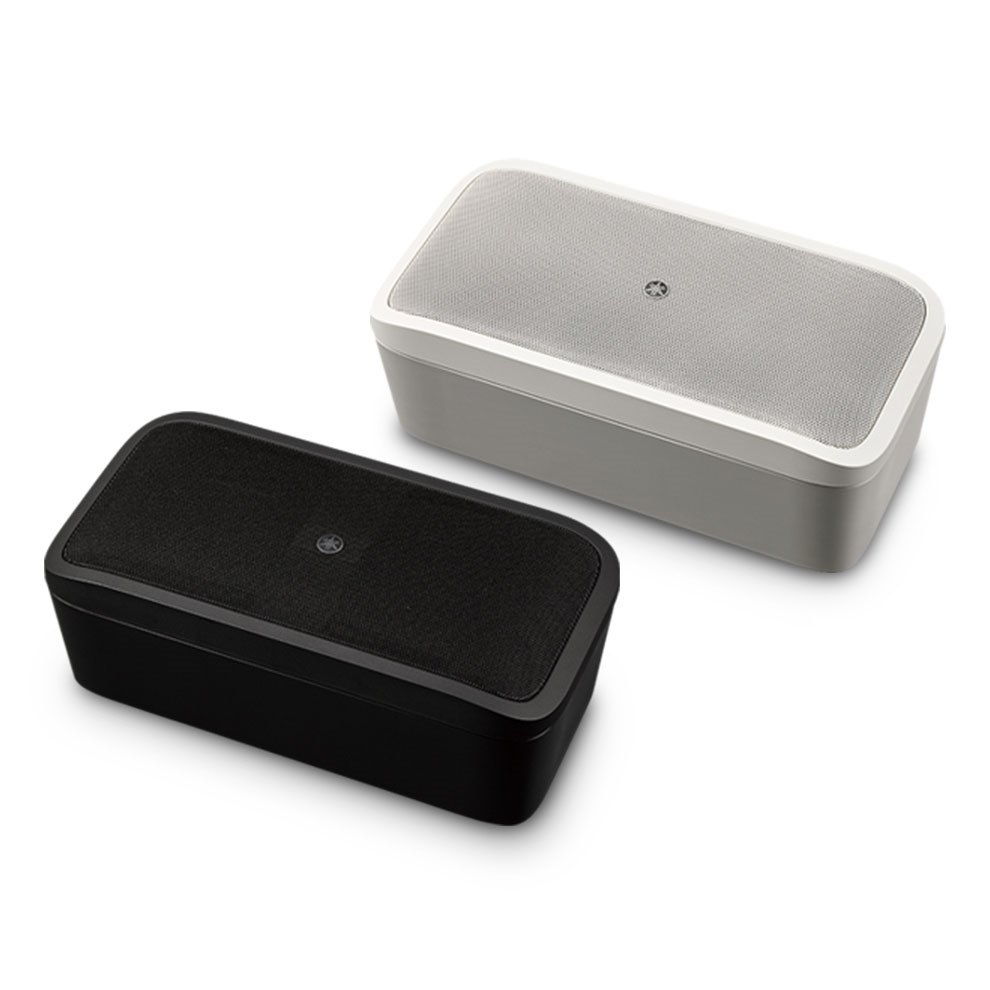

VXS3SB / VXS3SW 墙面安装扬声器

3.5" Dual SR-Bass™ subwoofer for high and low impedance systems

  • Versatile subwoofer compatible with low and high impedance systems
  • Sound and size ideally matched to the VXS1ML
  • SR-Bass™ technology delivers solid bass in a compact unit
  • Satellite connectors for easy setup
  • Dedicated wall/ceiling mount hardware supplied
  • Black and white models available
  • Paintable enclosures and grilles
  • Recommended satellite speakers: VXS1ML

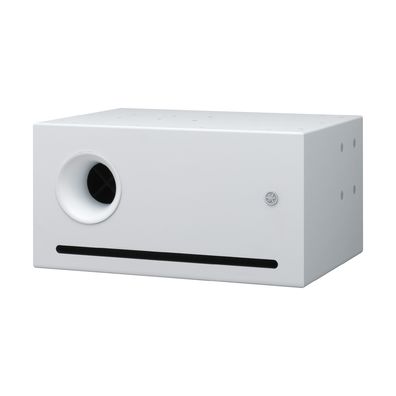

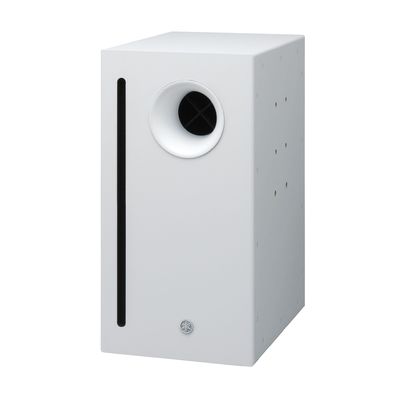

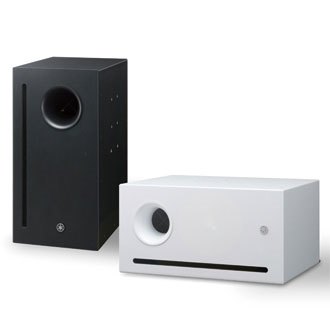

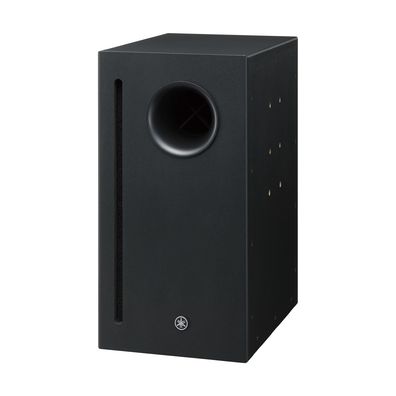

VXS10S / VXS10SW 墙面安装扬声器

10" dual voice coil subwoofer for low impedance systems

  • Versatile low-impedance subwoofer
  • Sound and size ideally matched to the VXS and VXC series
  • Bass-reflex design ensures smooth, distortion-free low-frequency extension
  • Dual voice coil configuration supports stereo sources
  • Satellite connectors for easy setup
  • Dedicated wall-mount hardware supplied
  • Black and white models available
  • Recommended satellite speakers: VXS3F, VXS5, VXS8, VXC4, VXC6, VXC8, VXC3F

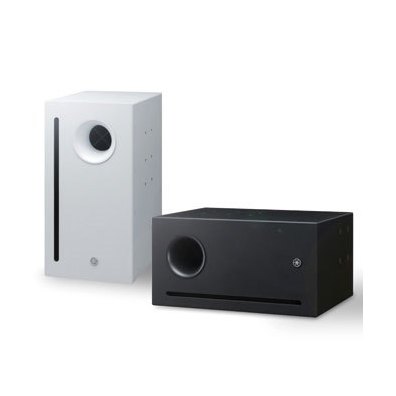

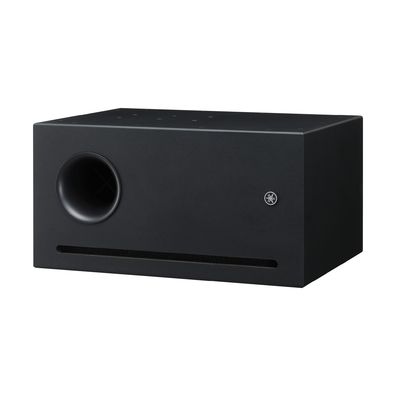

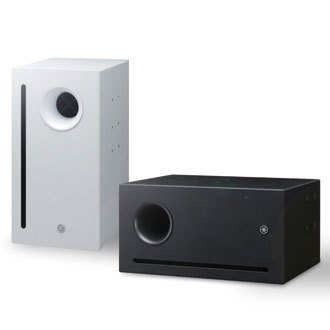

VXS10ST / VXS10STW 墙面安装扬声器

10" dual voice coil subwoofer for high impedance systems

  • Versatile high-impedance subwoofer
  • Sound and size ideally matched to the VXS and VXC series
  • Bass-reflex design ensures smooth, distortion-free low-frequency extension
  • Dual voice coil configuration supports stereo sources
  • Satellite connectors for easy setup
  • Dedicated wall-mount hardware supplied
  • Black and white models available
  • Recommended satellite speakers: VXS3F, VXS5, VXS8, VXC4, VXC6, VXC8, VXC3F

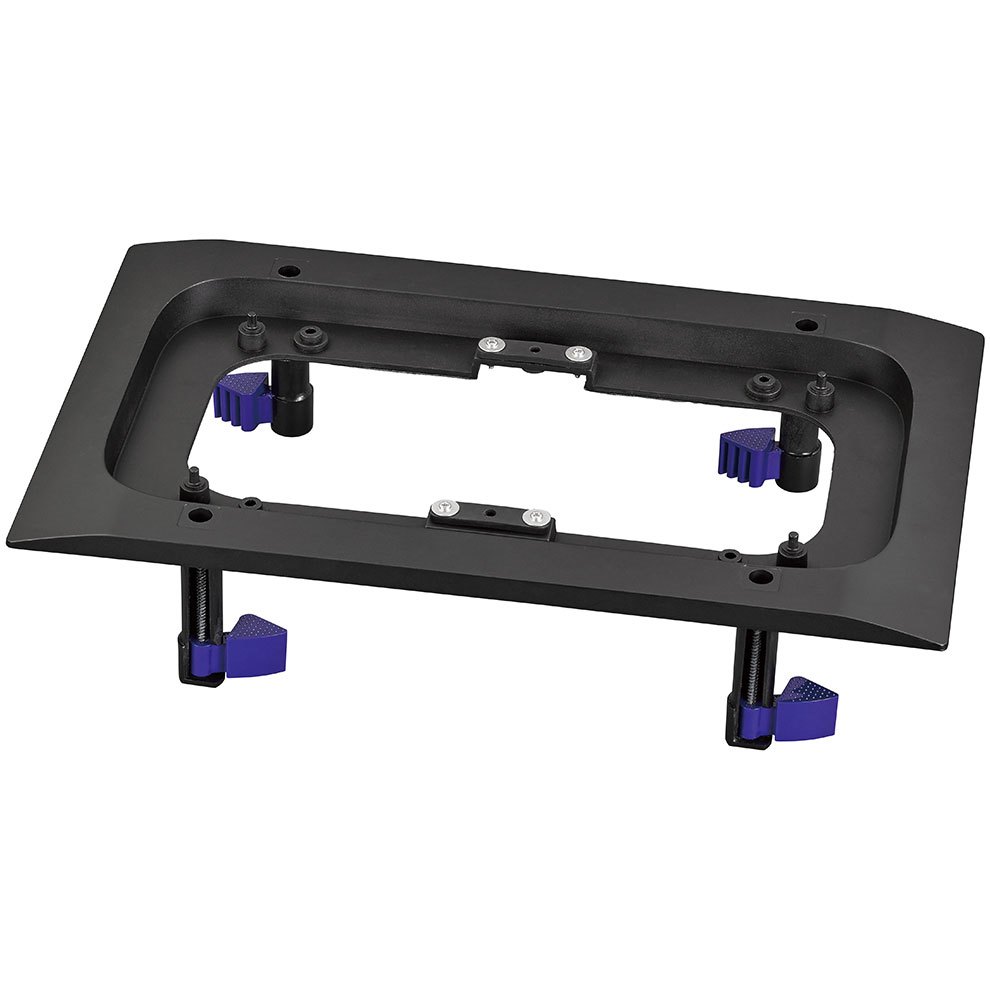

CMA3SB / CMA3SW 配件

Ceiling Mount Adapter for VXS3S.

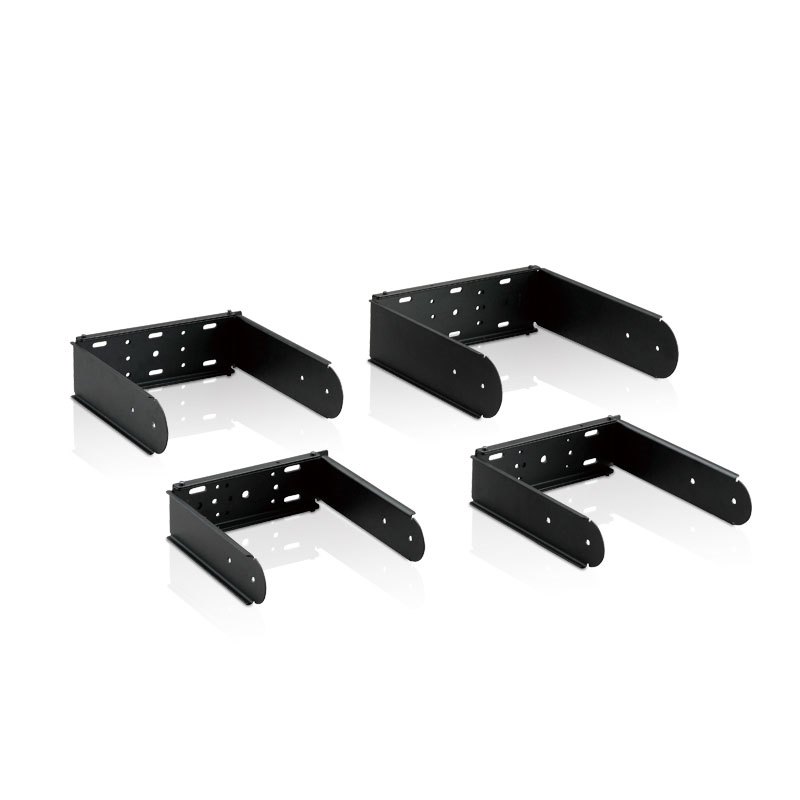

UB-DXR8 配件

U-brackets allow simple and easy rigging in both horizontal and vertical configurations. (for DXR8)

A Choice of Models for All Low-frequency Needs

Luxurious bass response can enhance musical presence and realism in a big way. Yamaha offers the VXS3S for smoothly extended low-end power, and the VXS10S and VXS10ST for applications that require maximum bass impact. Choose the model that best suits the size of the system and the full-range speakers used.

Low-frequency Enhancement Methods

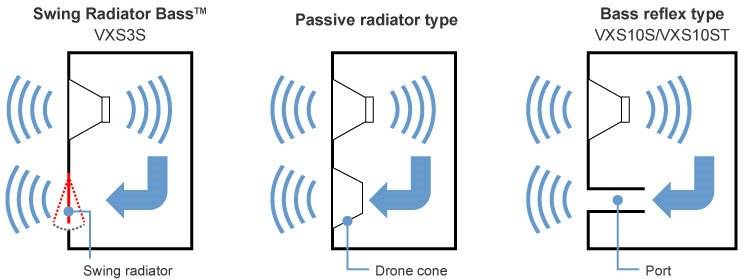

A number of methods are used to enhance low frequency response in speaker enclosures. In bass reflex designs, a tuned port in the enclosure boosts low frequencies emanating from the rear of the speaker unit. The VXS10S adopts this method, specializing in more powerful low frequency reproduction. The problem with this approach is that as the enclosure becomes smaller or thinner, the size of the port must be reduced accordingly, resulting in increased resistance and correspondingly reduced bass enhancement. Bass reflex designs are not always suitable for compact enclosures.

Passive radiator designs avoid the use of a port, instead boosting bass response with a tuned passive “drone cone.” The passive radiator method is more suitable for compact enclosures, but the passive cone tends to be heavy, requiring some form of firm, durable suspension that can reduce efficiency. The directivity of the passive radiator also places restrictions on where and how the system can be installed.

Original Yamaha SR-Bass™ technology employed in the VXS3S suspends a four-sided diaphragm on only one of its sides, using the resonance of the diaphragm to enhance the system’s low-frequency output. There are no limitations on the shape and materials used for the diaphragm, making SR-Bass™ technology applicable to a wide range of speaker designs, including compact models.

Yamaha offers 2 choices. That is compact VXS3S and powerful VXS10S. Please select the best model for your application.

Satellite Connectors Optimize Balance

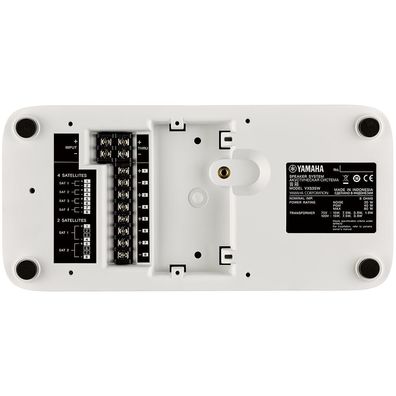

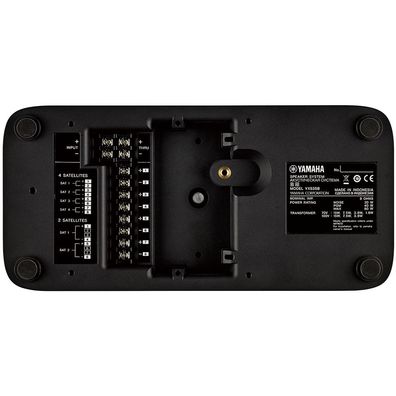

The VXS3S and VXS10S have satellite connectors on the rear panel, minimizing the number of amplifier channels required to get a system up and running. And since the VXS3S and VXS10S support high-impedance connections, it is possible to connect low-impedance satellites while the subwoofer is connected to a high-impedance system, for example. A built-in high-pass filter is automatically applied to the satellite speakers, providing exceptionally smooth, natural frequency crossover from subwoofer to satellites.

Flexible Installation Options

In addition to the supplied wall-mounting hardware, a variety of optional hardware allows VXS series “S” models to be mounted in a number of ways. The VXS10S can be placed on the floor or mounted on a wall or ceiling, while the VXS3S additionally allows flush ceiling mounting.

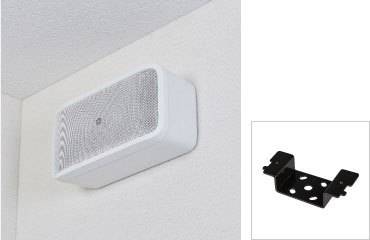

Surface-mount (VXS3S)

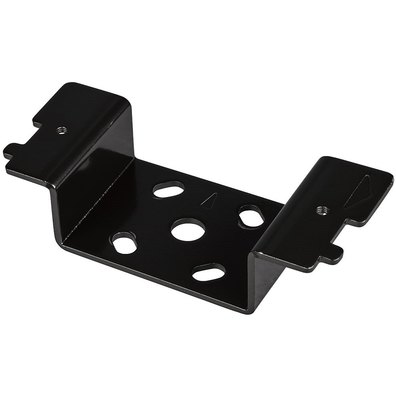

*Requires the supplied bracket and hardware.

Ceiling-mount (VXS3S)

*Requires the optional CMA3S bracket.

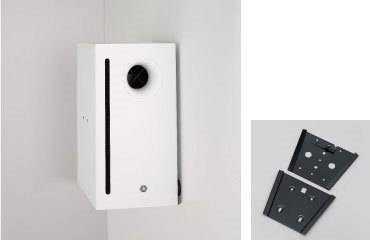

Surface-mount (VXS10S/VXS10ST)

*Requires the supplied bracket and hardware.

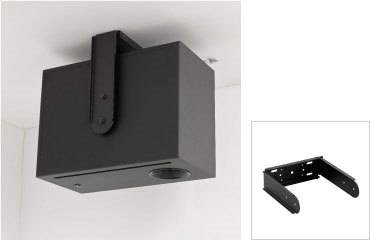

Ceiling-mount (VXS10S/VXS10ST)

*Requires the optional UB-DXR8 bracket.

VXS3SB / VXS3SW VXS10S / VXS10SW VXS10ST / VXS10STW
Speaker type SR-Bass™ type Subwoofer Bass-reflex type Subwoofer Bass-reflex type Subwoofer
Frequency range (-10dB) 65Hz-180Hz 45Hz - 250Hz 45Hz - 250Hz
Components LF 3.5" Cone 10" Dual Voice Coil 10" Dual Voice Coil
Power rating NOISE 20W 100W + 100W -
PGM 40W 200W + 200W -
PEAK 80W - -
Nominal impedance 8Ω + 8Ω -
Satellite impedance 8Ω load per satellite output recommended *1 8Ω load per satellite output recommended *2 8Ω load per satellite output recommended *2

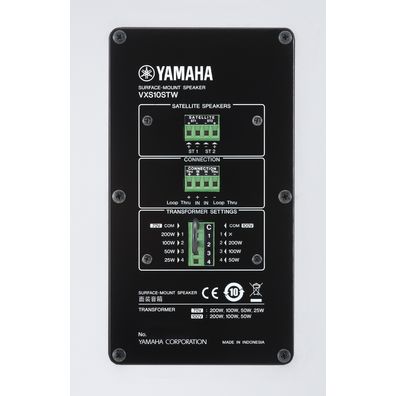

Transformer taps 100V 15W, 7.5W, 3.8W - 200W (50Ω), 100W (100Ω), 50W (200Ω)
70V 15W, 7.5W, 3.8W, 1.9W - 200W (25Ω), 100W (50Ω), 50W (100Ω), 25W (200Ω)
SPL Sensitivity (1W; 1m on axis) 79dB SPL *3 96dB SPL *3 96dB SPL *3
Peak (Calculated) 98dB SPL *4 125dB SPL *4 -

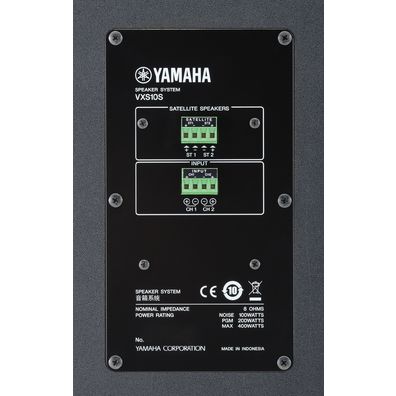

I/O connectors TERMINAL BLOCKS(4pin) Input: +/-, Loop-thru: +/-, TERMINAL BLOCKS(8pin) Satellite output:+/- (ST1~ST4) Input: 1x Euroblock (4P)(CH1: + / -, CH2: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -) Input: 1x Euroblock (4P)(Input: + / -, Loop Thru: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -)
Protection circuit Load protection Full-range power limiting for protecting network and transducers Full-range power limiting for protecting network and transducers Full-range power limiting for protecting network and transducers
Shape Rectangular Rectangular Rectangular
Cabinet material ABS MDF MDF
Finish VXS3SB:Black (approximate value:Munsell N3) VXS3SW:White (approximate value:Munsell N9) VXS10S: Black (approximate value:Munsell N3), VXS10SW: White (approximate value:Munsell 3.5PB9.0/1) VXS10S: Black (approximate value:Munsell N3), VXS10SW: White (approximate value:Munsell 3.5PB9.0/1)
Dimensions W 322mm (12.7") *5 260mm (10.2") *5 260mm (10.2") *5
H 162mm (6.4") *5 500mm (19.7") *5 500mm (19.7") *5
D 118mm (4.6") *5 389mm (15.3") *5 389mm (15.3") *5
Net weight 2.7kg (6.0 lbs) *5 16.5kg (36.4lbs) *5 19.5kg (43.0lbs) *5

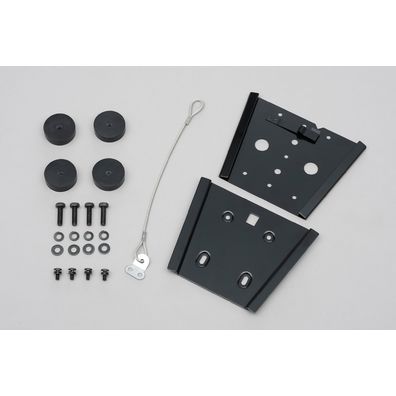

Accessories Mounting bracket, Safety wire, Spacer, Screw, Masking sheet Wall mount bracket Wall mount bracket
Packaging Packaged each Packaged each Packaged each
Certificate NFPA70, CE, RoHS CE, EAC, RoHS CE, EAC, RoHS
EN54-24 compliance - - -

Commercial Installation Solutions

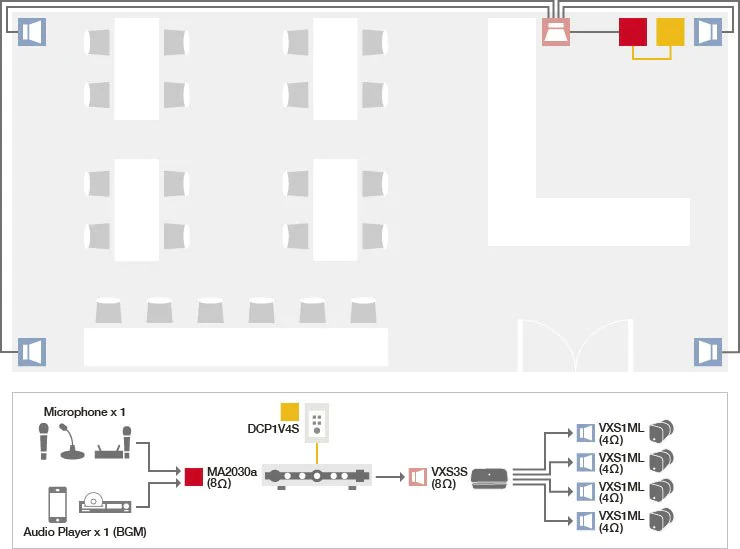

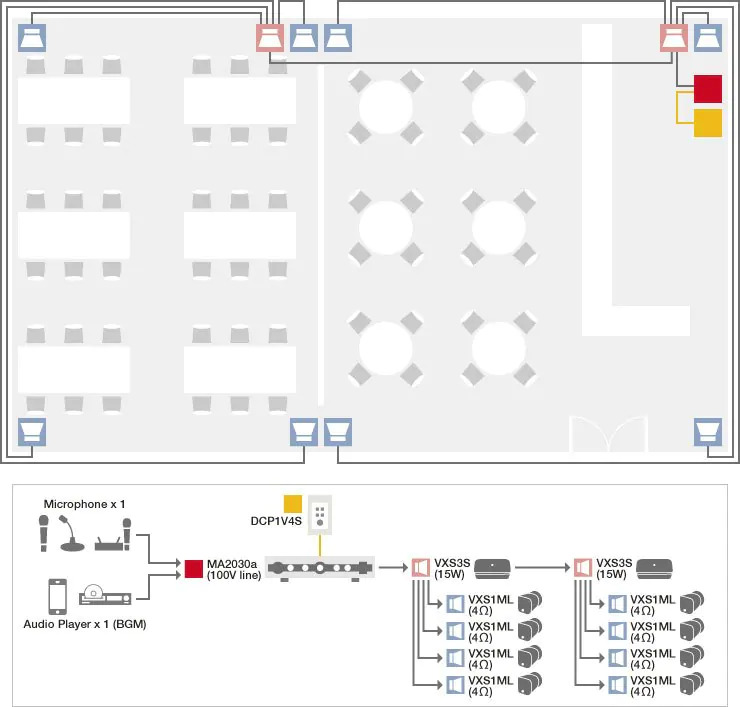

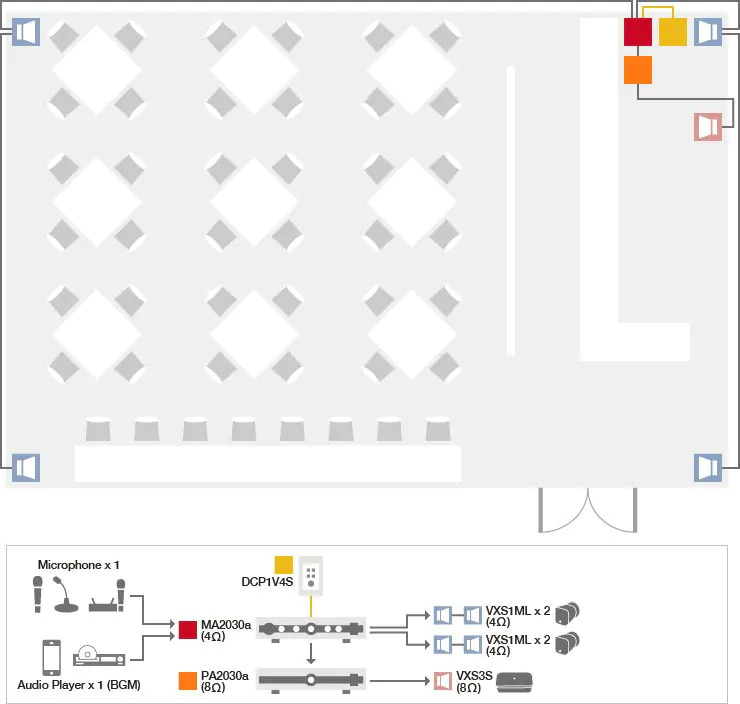

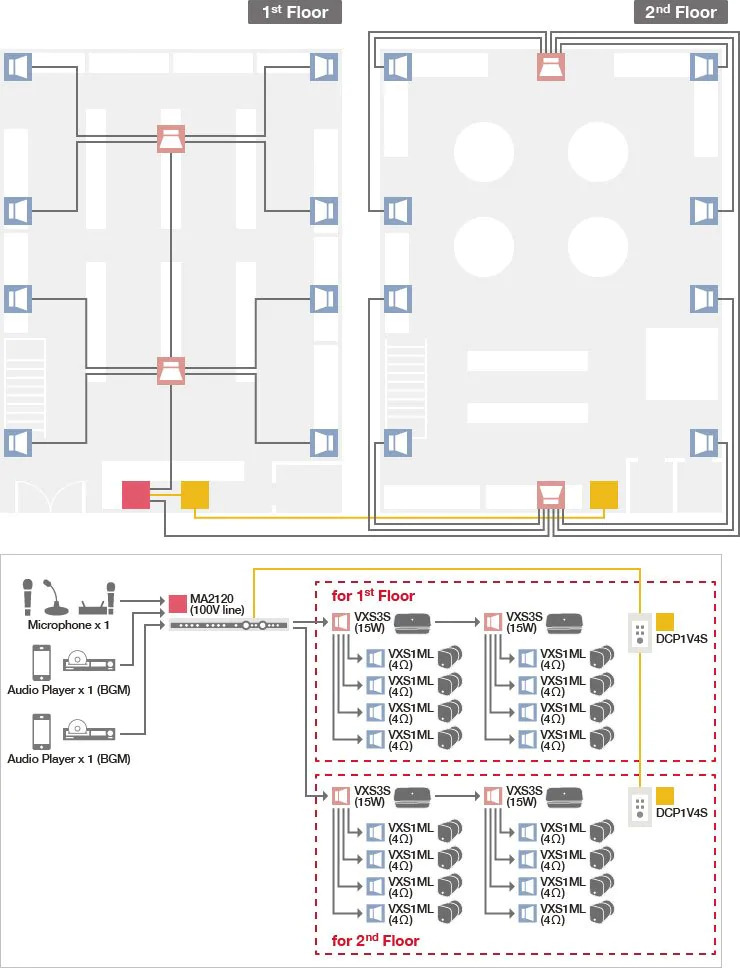

System Examples Catalog
